11.1. Proxy Aggregator Architecture

This section describes the MySQL Enterprise Monitor Proxy and Aggregator architecture.

Default Architecture

The following diagram shows the MySQL Enterprise Monitor Proxy and Aggregator architecture.

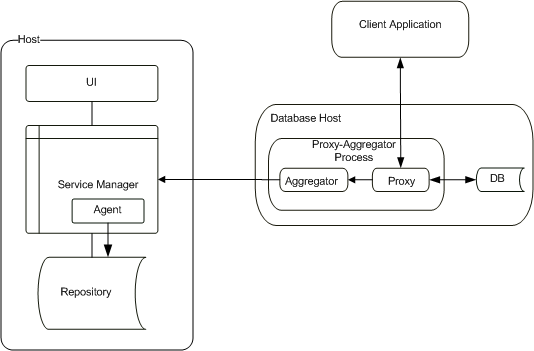

Figure 11.1. MySQL Enterprise Monitor Proxy and Aggregator Architecture

MySQL Enterprise Monitor Proxy and Aggregator Architecture

Note

The MySQL Enterprise Monitor Proxy and Aggregator does not have to be installed on the same host as the monitored MySQL instance. You can install it on another host.

MySQL Enterprise Monitor Aggregator with Connector

Important

The MySQL Enterprise Monitor Aggregator is supported by the PHP Connector. The other Connectors do not require the Aggregator and can communicate directly with the MySQL Enterprise Service Manager once configured to do so. For more information on configuring the Connectors, see Chapter 12, Configuring Connectors.
